| Brand Name : | OEM |
| Certification : | ISO / SGS / RoHS |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 550T Per Month |
| Delivery Time : | 10 - 15 Days |

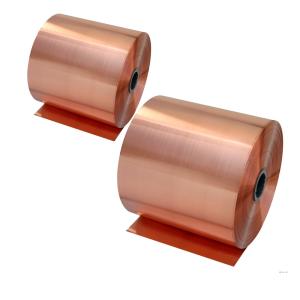

C11000 Insulation Transformer PCB Copper Foil
Applications for Copper Foil
1) Transformer
2) Water Heater exchanger unit
3) Automotive manufacturers
Production capacity for Copper Foil
550 tons output per month
100kg trial order is available
Name | GB | ALLOY NO. | SIZE (mm) | ||||
(ISO) | (ASMT) | (JIS) | (BIS) | (DIN) | |||
Copper Foil | T2 | Cu-ETP | C11000 | C1100 | C101 | R-Cu57 | Thickness: 0.006-0.1 /Max Width: 650 |
Mechanical Properties
Temper | JIS Temper | Tensile Strength Rm/N/mm 2 | Elongation A50/% | Hardness HV |
M | O | 310~410 | ≥ 30 | 40~60 |
Y2 | 1/2H | 320~450 | ≥ 20 | 55~85 |
Y | H | 440~480 | - | 80~150 |
T | EH | 450~540 | - | - |
Note: We can provide products with other properties according to customers` requirements.
Sizes and Tolerances (mm)
Thickness | Thickness Tolerances | Width | Width Tolerances |
0.006~0.04 | ± 0.001 | 1.0~650 | ± 0.1 |
> 0.04~0.10 | ± 0.002 |
Specifications Available (mm)
Thickness | Width | Temper |
0.006~0.04 | 1.0～650 | O,1/2H,H,EH |
> 0.04~0.10 | 1.0～650 | O,1/2H,H,EH |
Why Choose us Civen as your supplier?
1. Very competitive price
2. Small order acceptable
3. Good quality
4. On time delivery and perfect service
5. Customers' design are welcome!
|
|
