Certainly! Here is a concise outline for a company introduction in English. You can customize it with specific details about your company.
6 Years
| Ask Lasest Price | |
| Model Number : | |
| Brand Name : | OEM |
| Price : | Negotiable |
| Certification : | ISO / SGS / RoHS |
| Delivery Time : | 10 - 15 Days |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 550T Per Month |

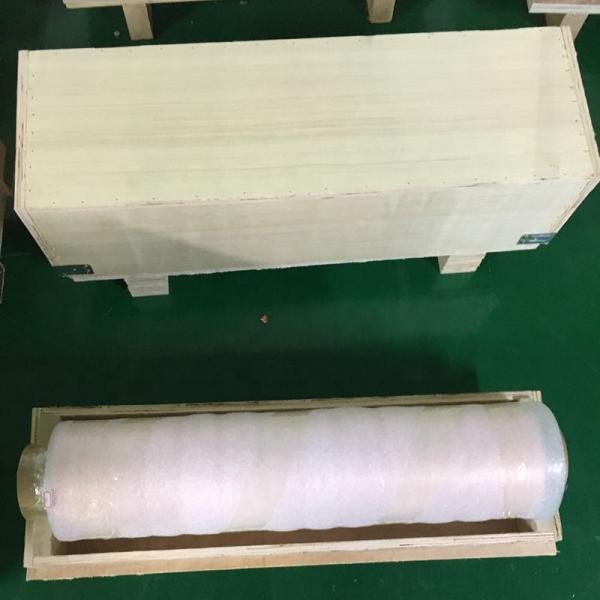

For Lab research, we sale 2.5kg/roll or A4 size per pcs, the width can be customized.
For production, each roll weight, width can be customized.
Except 9um,10um and 12 um, other thickness is no problem.
Item | T-Cu-09 | T-Cu-10 | T-Cu-12 | |
Thickness (um) | 9 | 10 | 12 | |
Areal density (g/m2) | 85-90 | 95-100 | 105-110 | |
Purity(%) More than 99.9% | Cu ≥99.9% | |||
Fe < 0.0010% | ||||
Bi < 0.00020% | ||||
Pb < 0.0005% | ||||
Roller core inner diameter | 76mm | |||
Width | 200mm | |||
Tensile strength (MPa) | ≥294 | ≥300 | ≥305 | |
Normal elongation(%) | 2.5 | 2.7 | 3.0 | |
High temperature Tensile strength180℃(MPa) | ≥147 | ≥150 | ≥153 | |
High temperature elongation180℃(%) | 2 | 2 | 2.5 | |
Anti oxidization (180℃ Heating 1h) | No oxidation of points on the surface,The color does not change,Copper foil without fracture | |||
Surface roughness(um) Rz | Drum side(um) | Less than 0.3 | Less than 0.3 | Less than 0.35 |
Matte side(um) | Less than 3.0 | Less than 3.5 | Less than 4.0 | |
Surface tension(dyne/cm) | Drum side | 62 | 65 | 68 |
Matte side | 62 | 65 | 68 | |
Coating performance | Cu foil with uniform tension on both sides, slurry coating uniformity | |||
Characteristics
Excellent cold working performance, high srength and high
elasticity, has excellent electroplating, hot dip and welding
performance, seawater and industrial atmosphere corrosion.
|
|
