Certainly! Here is a concise outline for a company introduction in English. You can customize it with specific details about your company.
6 Years
| Ask Lasest Price | |
| Brand Name : | OEM |
| Model Number : | |
| Certification : | ISO / SGS / RoHS |
| Price : | Negotiable |
| Supply Ability : | 550T Per Month |
| Delivery Time : | 10 - 15 Days |
| Payment Terms : | L/C, T/T |

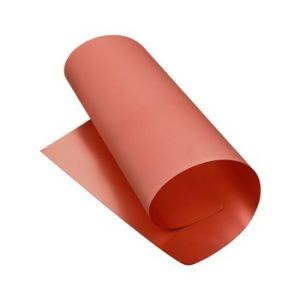

9um 12um 18um 35un 70um Thickness FPC ED Copper Foil
Prodent Feature
1. High tensile strength
2. High Elongation
3. Excellent etchability
4. Eco-friendly products and processes
5. free profile
6. the treated foil is pink
Typical Application : FPC, Graphene Carrier
Typical properties of Low Coarsening Reverse Treated Coppe Foil
| Classification | Unit | Requirement | ||||
| Nominal thickness | / | 9um | 12um | 1/2 OZ(18um) | 1 OZ(35um) | 70um |
| Area Weight | g/㎡ | 87±4 | 107±4 | 153±5 | 285±10 | 585±20 |
| Purity | ％ | ≥99.9 | ≥99.9 | ≥99.9 | ||
| Roughness | Shiny side(Ra) um | 0.25±0.1 | 0.25±0.1 | 0.25±0.1 | 0.25±0.1 | 0.25±0.1 |
| Shiny side(Rz) um | 1.5±0.5 | 1.5±0.5 | 1.5±0.5 | 1.5±0.5 | 1.5±0.5 | |
| Matte side(Rz) um | Max.1.4 | Max.1.4 | Max.1.4 | Max.1.4 | Max.1.4 | |
| Matte side(Rz) um | Max.1.4 | Max.1.4 | Max.1.4 | Max.1.4 | Max.1.4 | |
| Tensile Strength | R.T.(23℃) | ≥350 | ≥350 | ≥350 | ≥350 | ≥350 |
| H.T.(180℃) Mpa | ≥200 | ≥200 | ≥200 | |||
| Elongation | R.T.(23℃) | ≥5 | ≥6 | ≥8 | ≥10 | ≥15 |
| H.T.(180℃)％ | ≥5 | ≥6 | ≥8 | ≥10 | ≥15 | |
| Glossiness(60℃) | --- | ≥450 | ≥550 | ≥600 | ≥600 | ≥650 |
| Pinholes&porosity | Number | No | ||||
| Anti-oxidization H.T.(200℃) | Minutes | 30 | ||||
|
|
